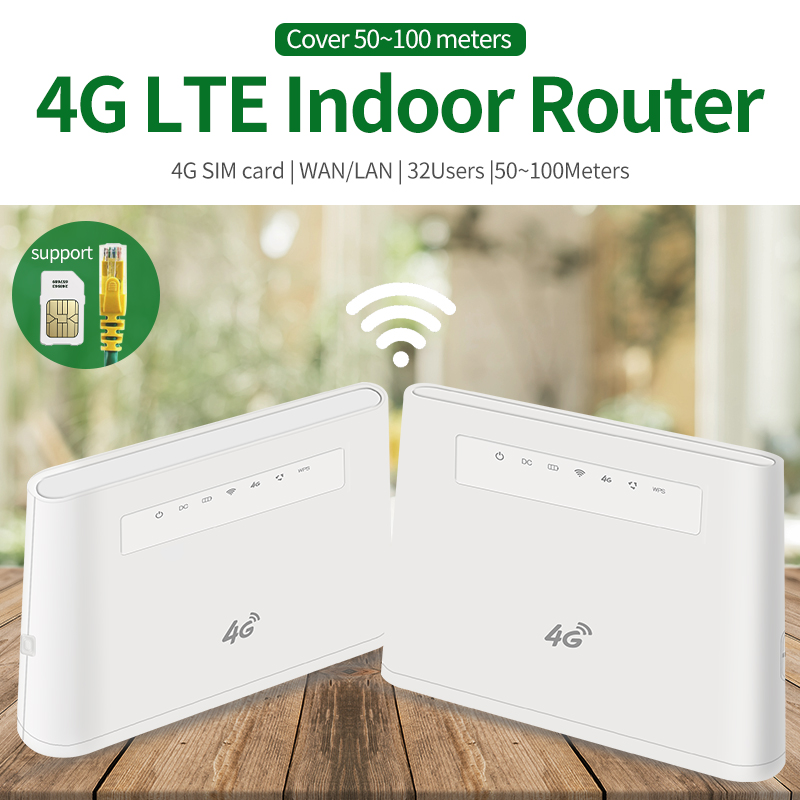

Indoor high range 4G LTE CPE with internal antenna

Intennal antenna CPE, support 32users working at the same time.

Item NO.:
R9-CPE
Lead Time:
30 days
Product Orgin:
China
Brand:
SUNCOMM
Shipping Port:
According to customer needs
Payment:
Payment in T/T
MOQ:
3000

New Products

Product Details

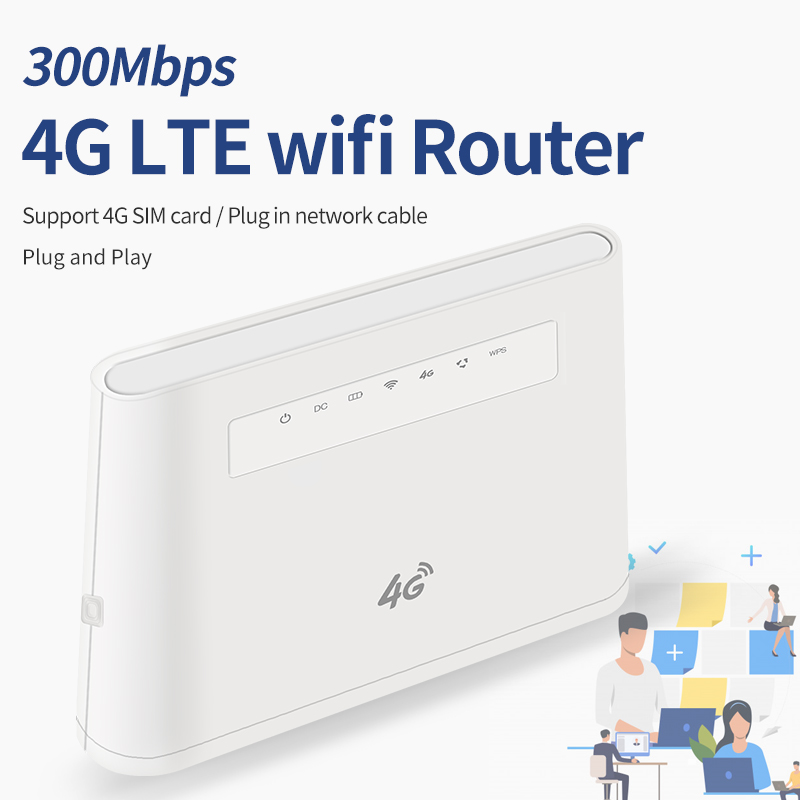

Indoor high range 4G LTE wireless router

Our R8B-CPE broadband fastest wireless router Meet multiple scenarios online,like 4G to Wifi;4G to cable;Broadbrand to wifi;Broadbrand to cable.

FDD&TDD: support many frequency bands of FDD and TDD to meet the Internet access needs of different regions. you can contact customer service for specific frequency bands.

Feature List:

R9 CPE 4G LTE Wifi Router
Hardware Feature
CPU	MT7628N
Modem	ZX297520V3
Memery	Flash/RAM:1G Nand Flash
Power supply	Power Jack,DC 12V/1A
Batteries	5800 Mah, Lio battery
Working time	5-8 hours
RJ45 Port	5x RJ-45 port(10BaseT/100BaseTX with Auto-MDIX IEEE 802.3/802.3u) for WAN/LAN Auto
RESET key	Using for restore factory default settings.(long press 8 seconds）
LED indicator	1 Power indicator
	2 System indicator
	3 Modem indicator: 3G with blue,4G with green.
	4 WIFI indicator
	5 WAN/LAN indicator
SIM card	Support Micro sim card
Antenna	External,1 x 5dbi Wifi Antenna;1x 5dbi 4g antenna
Wireless
Work Frequency	FCC: 2412-2462MHz(Ch1-Ch11)
Work Frequency	ETSI: 2412-2472MHz(Ch1-Ch13)
Transfer rate	11n：270/243/216/162/108/81/54/27Mbps
	135/121.5/108/81/54/40.5/27/13.5Mbps
	130/117/104/78/52/39/26/13Mbps
	65/58.5/52/39/26/19.5/13/6.5Mbps
	11g：54/48/36/24/18/12/9/6M（self-adaption）
	11b：11/5.5/2/1M（self-adaption）
Work channel	13x, Auto-selection or manually
Spread-spectrum	DSSS
Data modulation	BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
Rx Sensitivity@PER	270M：-61dBm@10% PER；130M： -61dBm@10% PER；108M：-61dBm@10% PER；54M：-65dBm@10% PER；11M：-85dBm@8% PER；6M：-88dBm@10% PER;1M：-90dBm@8% PER
Transfer distance	Indoor 30 meters as far as ;
Transfer distance	outdoor as far as 50 meters (owing to the different environment)
Tx Power	11n: 15±1.0dBm; 11g: 16±1.0dBm; 11b:19±1.0dBm（typical）
Frequency	FDD:FDD:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28 （bands can be customized)
	TDD：B38/B39/B40/B41
	WCDMA : BAND1/8 (Band customizable)
4G Transfer rate	TDD-LTE: 150Mbps DL / 50Mbps UL
4G Transfer rate	TD-SCDMA:
Software Feature
IP address	Static or DHCP

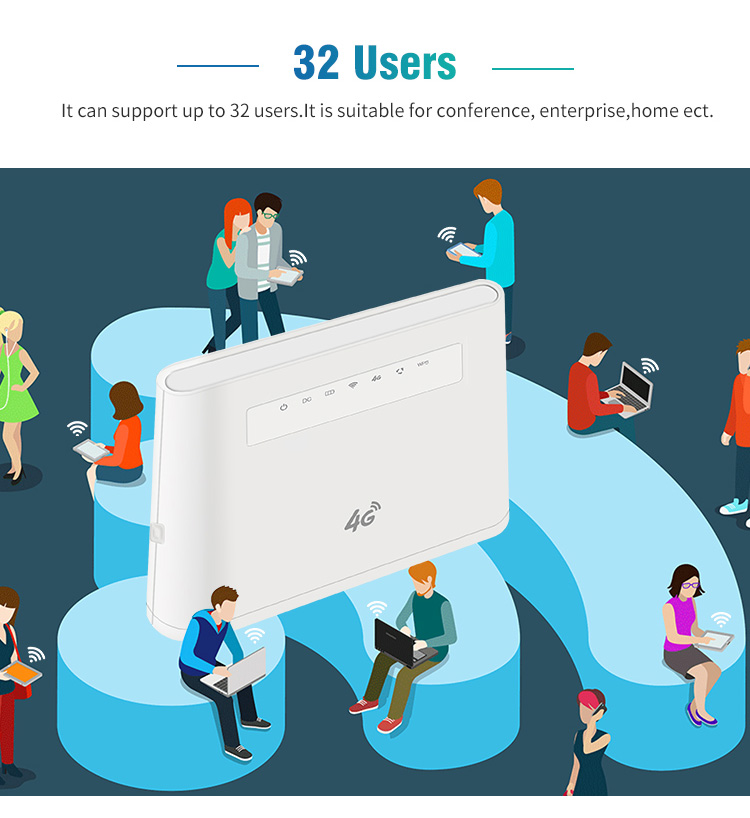

MAX. end users number	32
Router protocol	Static router，RIP1/RIP2
Management UI	Based WebUI(HTTP)
DHCP	Support Server and Client
Firewall	Built-in NAT Firewall
Network Protocol	TCP/IP, PPPoE,DHCP,ICMP,NAT,NAPT,ARP,PPP,PAP,CHAP,PPTP
ENVIRONMENT & PHYSICAL
Temperature range	-10 to 50 ℃ operation; -20 to 70 ℃ storage
Humidity(non-condering)	15% - 95% typical
Size	200mmX145mmX48mm

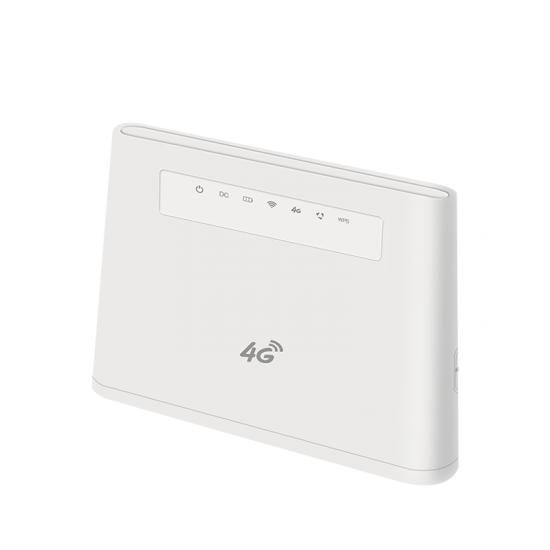

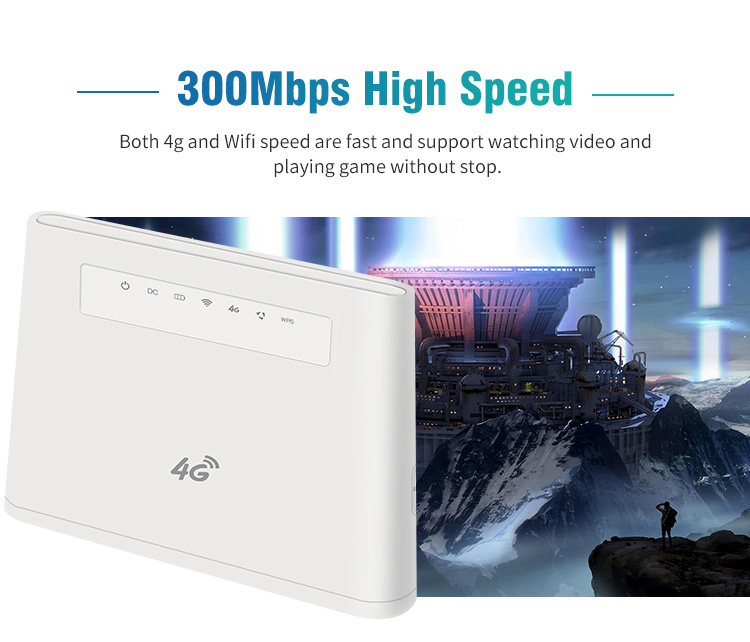

Products display:

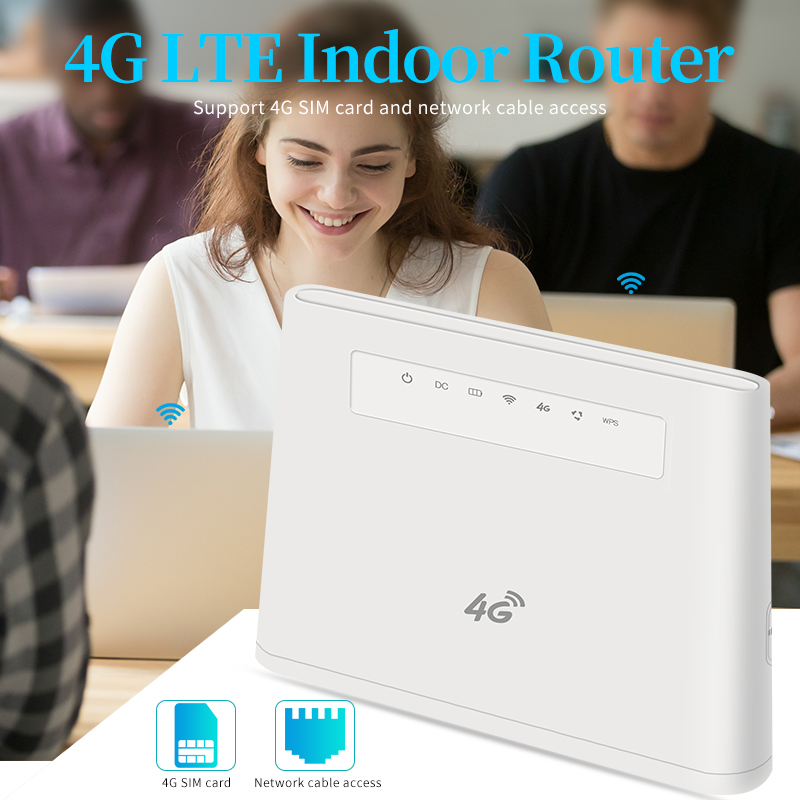

Indoor high range 4G LTE wireless router

Get to know us quickly：

13 years' experience in manufacture of wireless router products
Our R&D team develops customized products
We developed 8 new models in 2018
Our products meet CE, FCC and RoHS requirements
100% inspection of all products
0 delivery complaints in past years
Our factory passed audits by customers including Uzmobile, Gmobile, Skylink and Netlink

Custom wireless routers is available, Let us meet your requirements, call today.
